Installation
Installation Steps

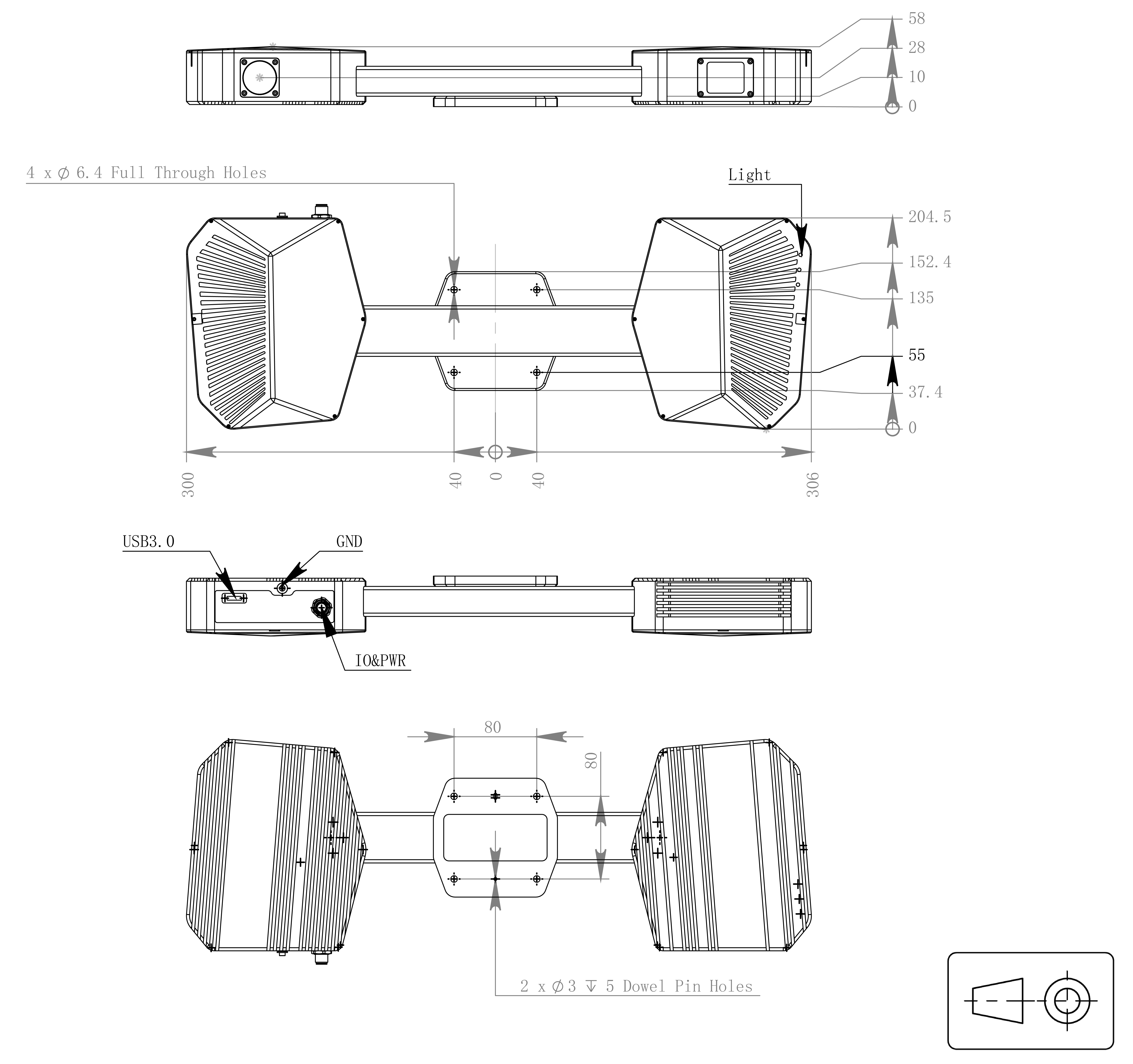

The mounting block of the S2041600 series camera features four 6.4mm diameter through holes, as shown in the box area of Figure 1. The recommended installation method is as follows: First, use 3mm diameter cylindrical pins (with recommended length ≥10mm) for camera positioning. Then, secure the camera from the front side using M6x30mm (or longer, depending on the thread depth of the mounting plate) hex socket head screws. The mounting plate should have an effective thread depth of at least 20mm.
①* Camera grounding screw hole, it is recommended to use a grounding wire for the camera, connecting the other end to a reliable ground to prevent damage from surrounding device leakage, unstable power supply voltage, or lightning strikes.
②* Grounding type: Functional grounding.
③* For detailed information on cable routing, please refer to the Cable routing guide for tow chain.
