Working Distance and Field of View

The S2041600 series camera, with its large field of view, is suitable for robotic grasping scenarios.

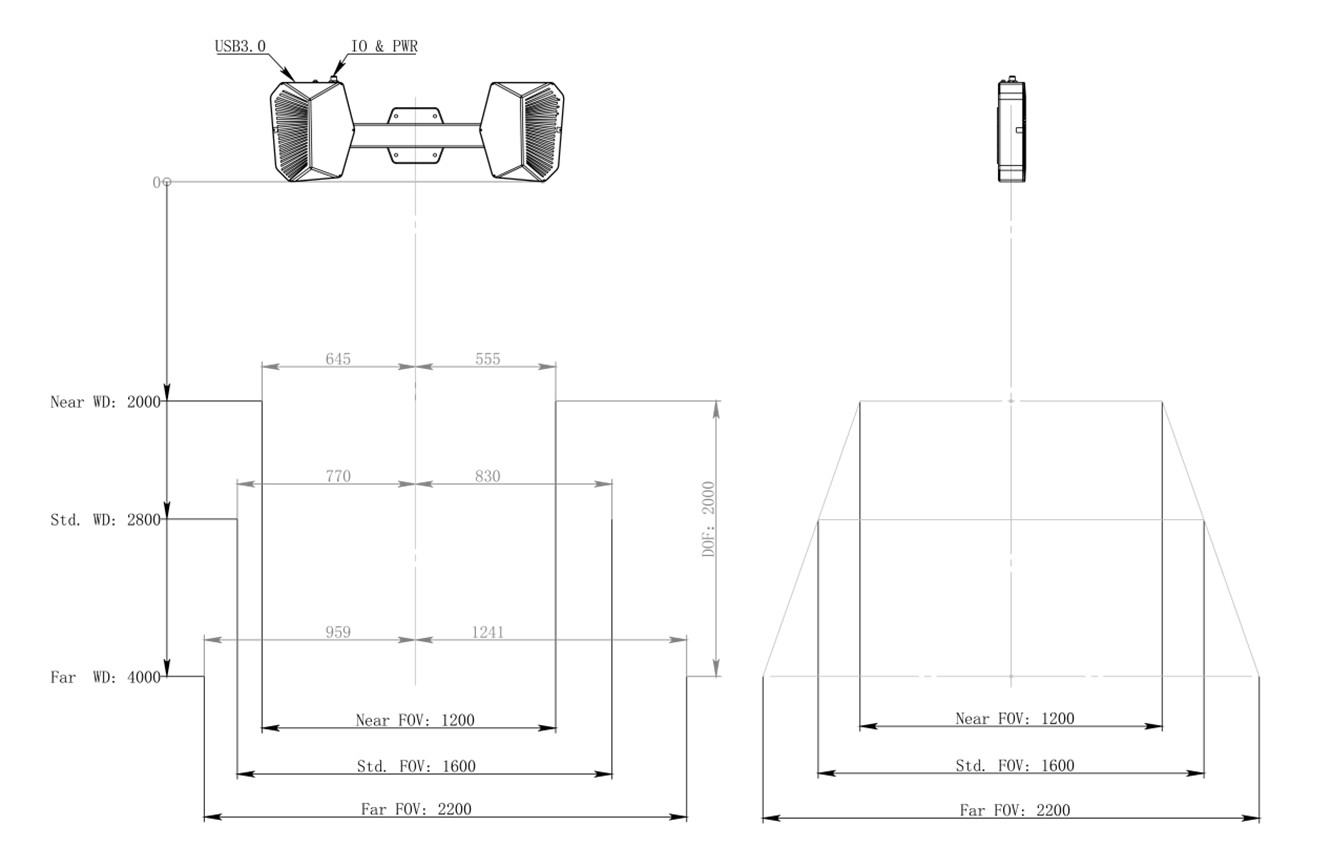

Figure 1: Relationship between Camera Shooting Distance and FOV (units: mm)

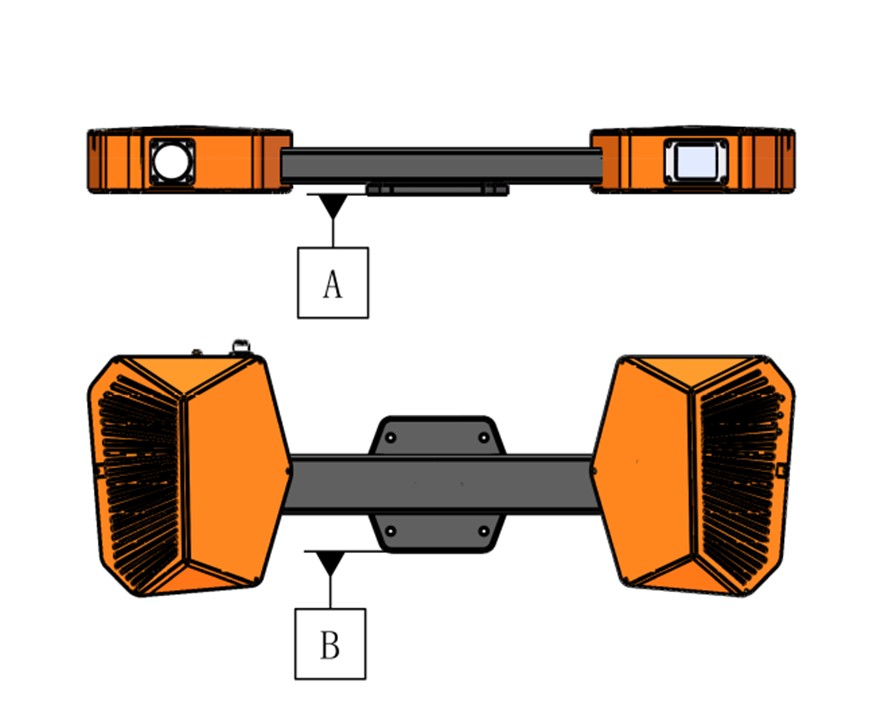

Figure 2: CAD Model Reference Standard

Model CAD Files

info

Note for viewing .STEP files on Windows systems: Due to Windows security policies, the file is locked after download. To view it, right-click, go to Properties - General - Security (at the bottom) - Unblock (check), and then the file can be viewed normally.
